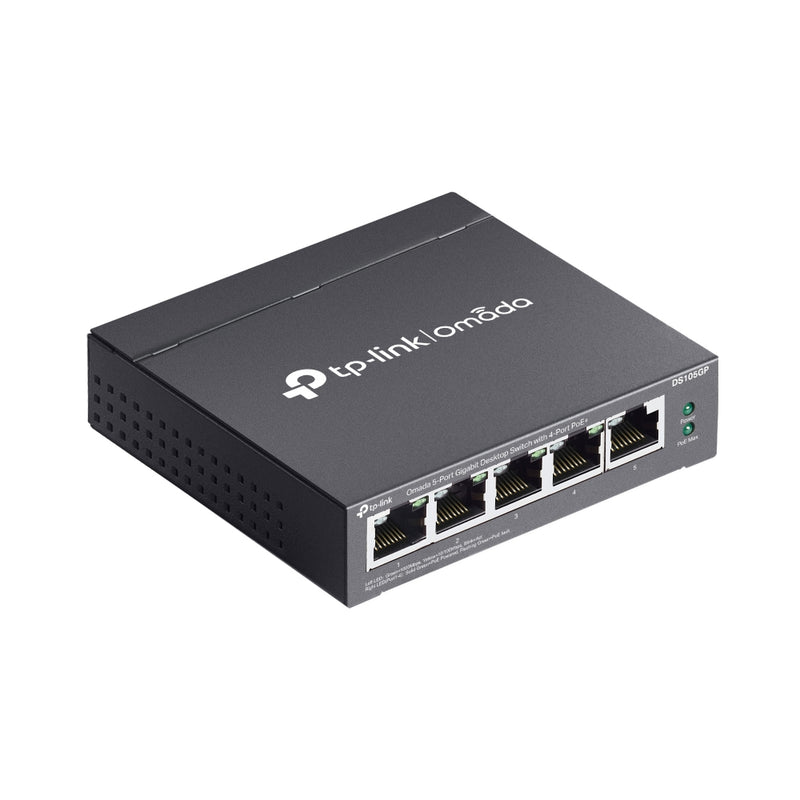

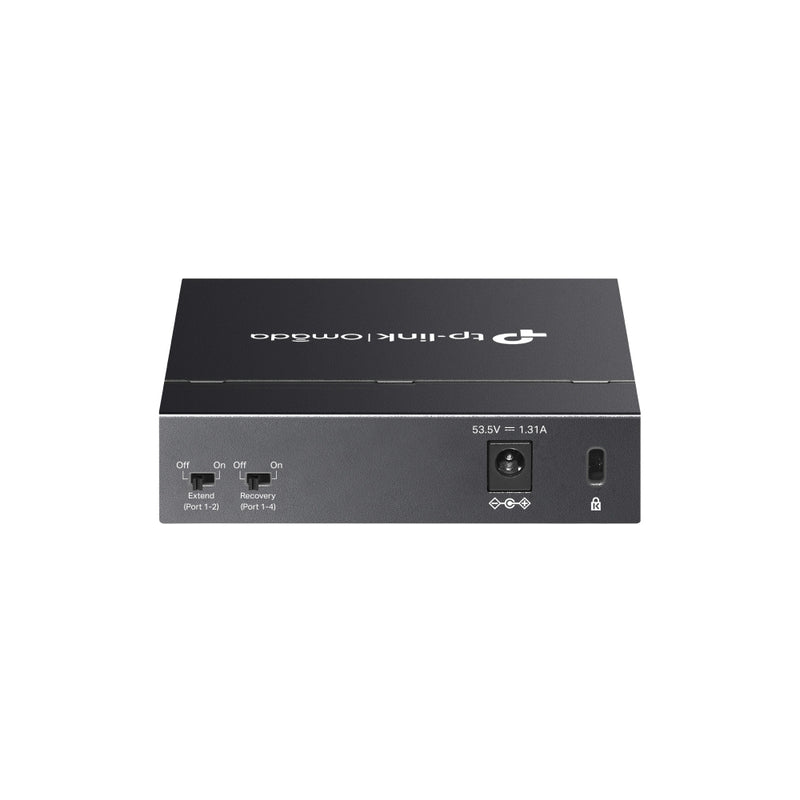

TP-Link Omada 5-Port Unmanaged Gigabit Desktop Switch

Roll over image to zoom in

Tech specs

Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, IEEE 802.1p
Interface: 5 x 10/100/1000 Mbps Ports; AUTO Negotiation/AUTO MDI/MDIX
Max. Power Consumption: 3.1 W (220 V/ 50 Hz)
Max Heat Dissipation: 10.54 BTU/h
Transmission Method: Store-And-Forward
Switching Capacity: 10 Gbps
MAC Address Table: 2K
Packet Forwarding Rate: 7.4 Mpps
Packet Buffer Memory: 1 Mbit
Jumbo Frame: 16 KB
External Power Supply: 5 V DC / 0.6A
Advanced Features: Green Ethernet technology, 802.3X Flow Control, 802.1P/DSCP QoS, IGMP Snooping, Loop Prevention

Box Contents

1 x Switch
1 x Power Adapter
Installation Guide

TP-Link Omada 5-Port Unmanaged Gigabit Desktop Switch

Name: TP-Link Omada 5-Port Unmanaged Gigabit Desktop Switch
Brand: TP-Link
SKU: NEDS105G
Availability: InStock

TP-LinkNEDS105G

In Stock

Quantity:

Streamline your wired network with the TP-Link Omada 5-Port Gigabit Desktop Switch. With five auto-negotiation RJ45 ports and plug-and-play simplicity, it delivers high-speed connectivity without the need for configuration. Built for reliability, it features a durable metal casing, fanless design, and advanced functions like 802.1p/DSCP QoS, IGMP Snooping, and loop prevention. Green Ethernet technology reduces power consumption, making it an eco-friendly choice for home or office networks.

Benefits

5 x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed, and no management required
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
