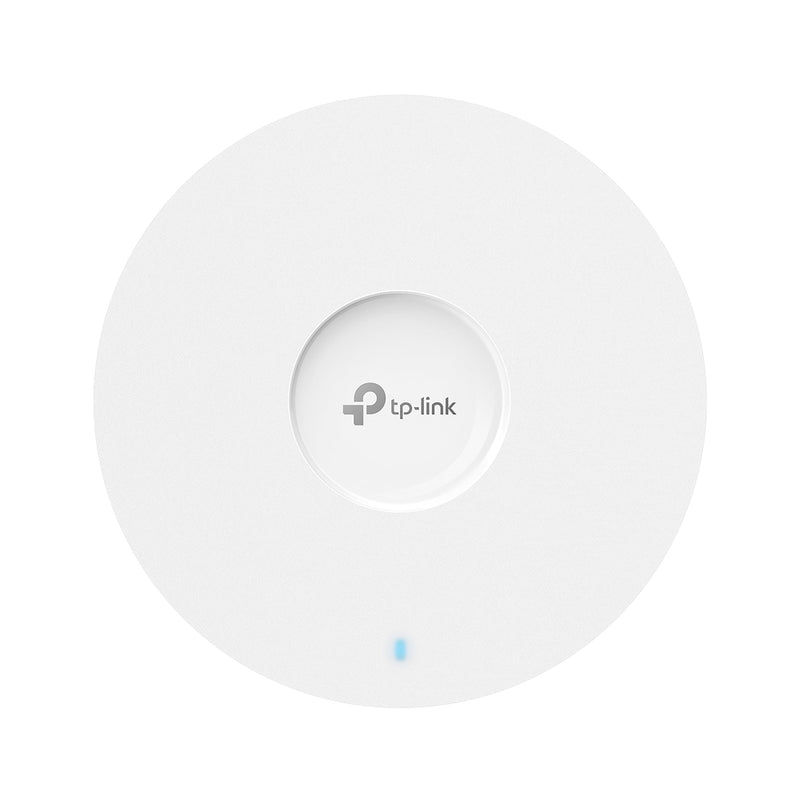

TP-Link Omada AX5400 Ceiling Mount Wi-Fi 6 Access Point

Roll over image to zoom in

Tech specs

Interface: 1 x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Power Supply: 802.3at PoE; 12 V / 2 A DC (Power adapter not included)
Max. Power Consumption: 22.3 W
Antenna: Internal Omni - 2.4 GHz 2 x 4 dBi; 5 GHz 4 x 5 dBi
Coverage: 140㎡(1500 ft²)
Concurrent Clients: 250+
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Signal Rate: 5 GHz Up to 4804 Mbps; 2.4 GHz Up to 574 Mbps
Bluetooth: Yes

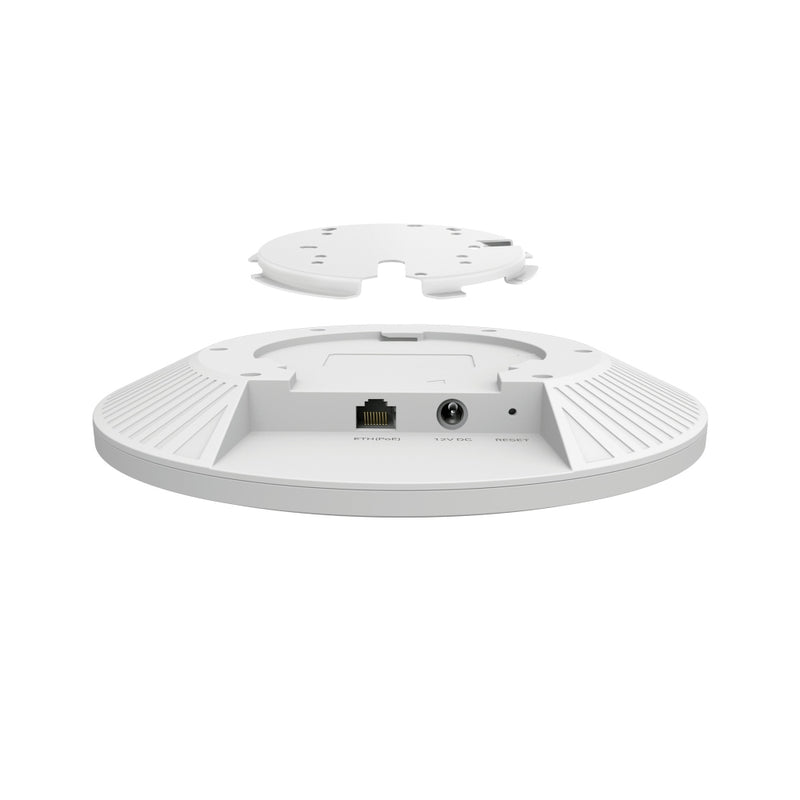

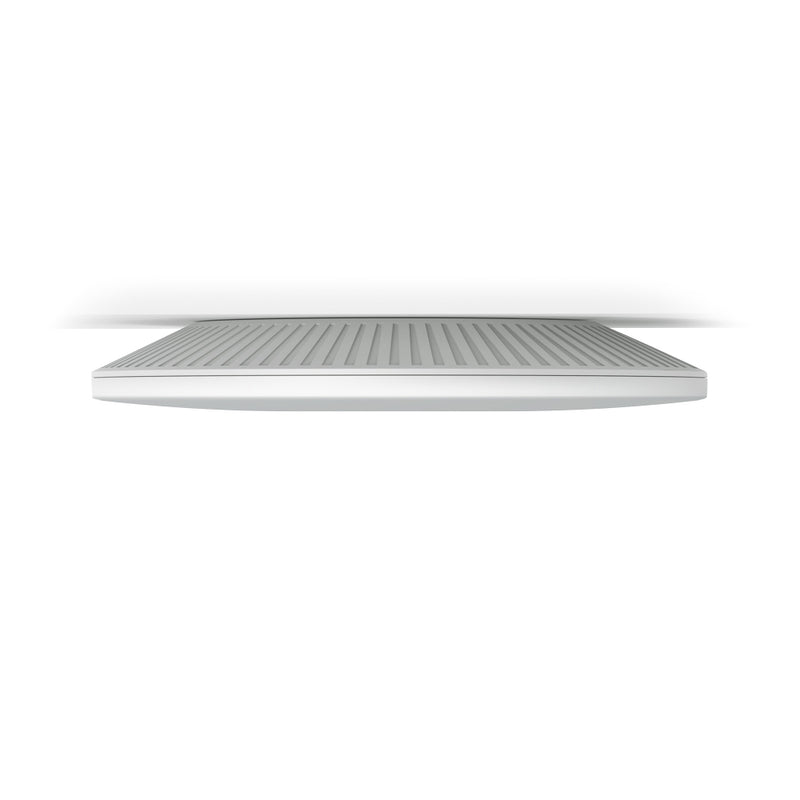

Mounting: Ceiling /Wall Mounting (Kits included)
Certifications: CE, FCC, RoHS
Operating Environment: Temperature 0°C to 40 °C (32°F to 104°F); Humidity 10%–90% non-condensing

Box Contents

1 x EAP673
1 x Ceiling Mounting Kit
1 x Wall Mounting Kit
Installation Guide

TP-Link Omada AX5400 Ceiling Mount Wi-Fi 6 Access Point

Name: TP-Link Omada AX5400 Ceiling Mount Wi-Fi 6 Access Point
Brand: TP-Link
SKU: NEEAP673
Availability: InStock

TP-LinkNEEAP673

Call to Order 1-888-835-3478

Quantity:

Experience ultra-fast, high-capacity wireless with the Omada AX5400 Ceiling Mount Access Point. Delivering up to 5.4 Gbps combined speeds and leveraging 160 MHz channels, it’s built for dense environments and peak performance. Integrated with Omada SDN for centralized cloud management, it supports seamless roaming, mesh networking, and flexible PoE+ or DC power options. With a sleek ceiling-mount design and internal high-gain antennas, the AX5400 ensures wide, reliable coverage for modern enterprise networks.

Benefits

Blazing-Fast Wi-Fi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz)
Integrated into Omada SDN, supporting centralized cloud Management, ZTP, and more
160 MHz Channel double the data at peak transmission times on a single stream
Advanced features: Supports seamless roaming, Omada Mesh, and more
Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations
