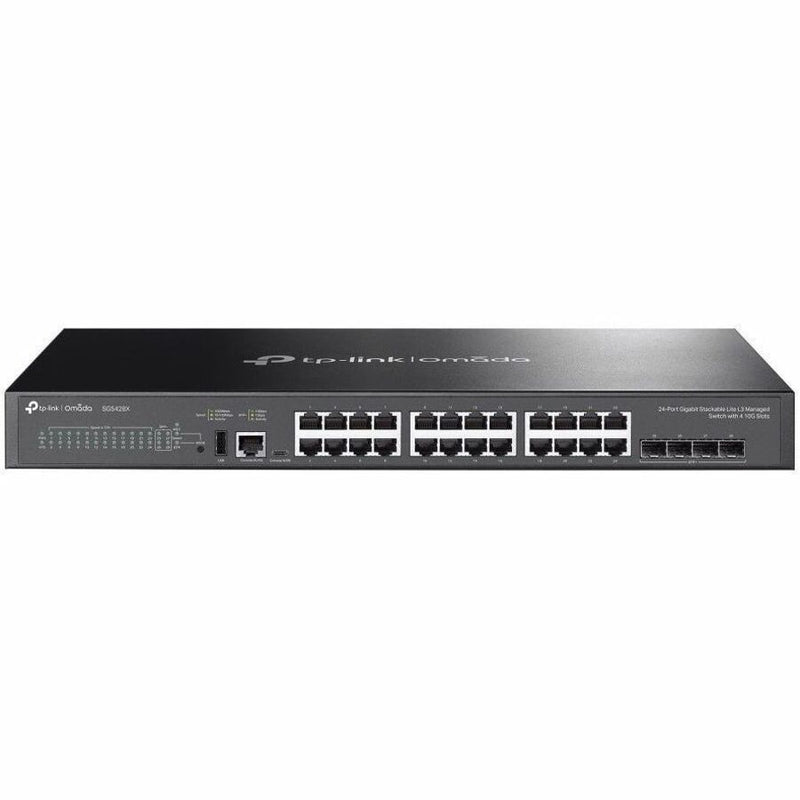

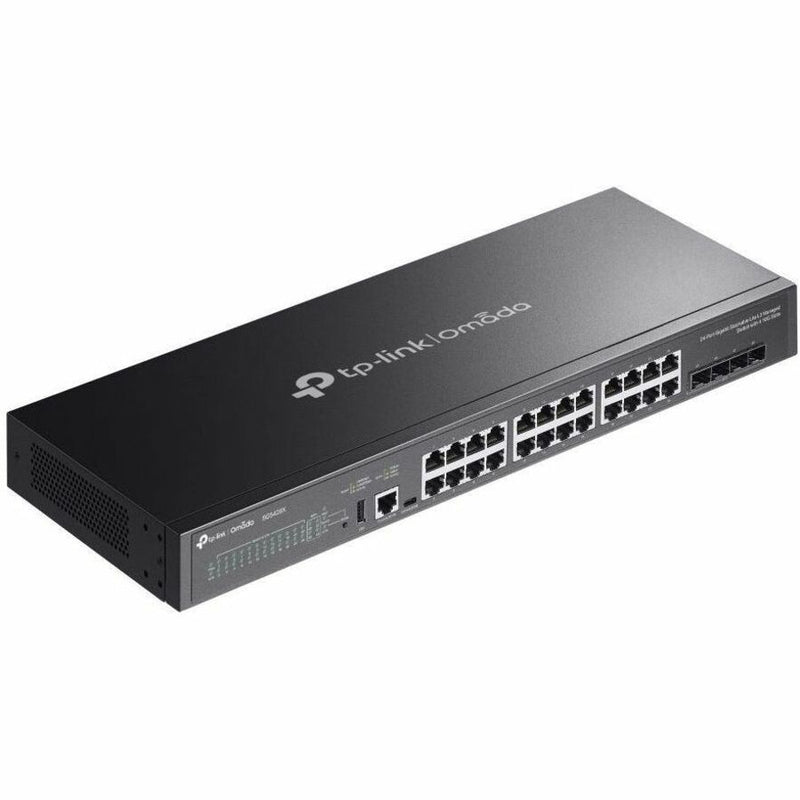

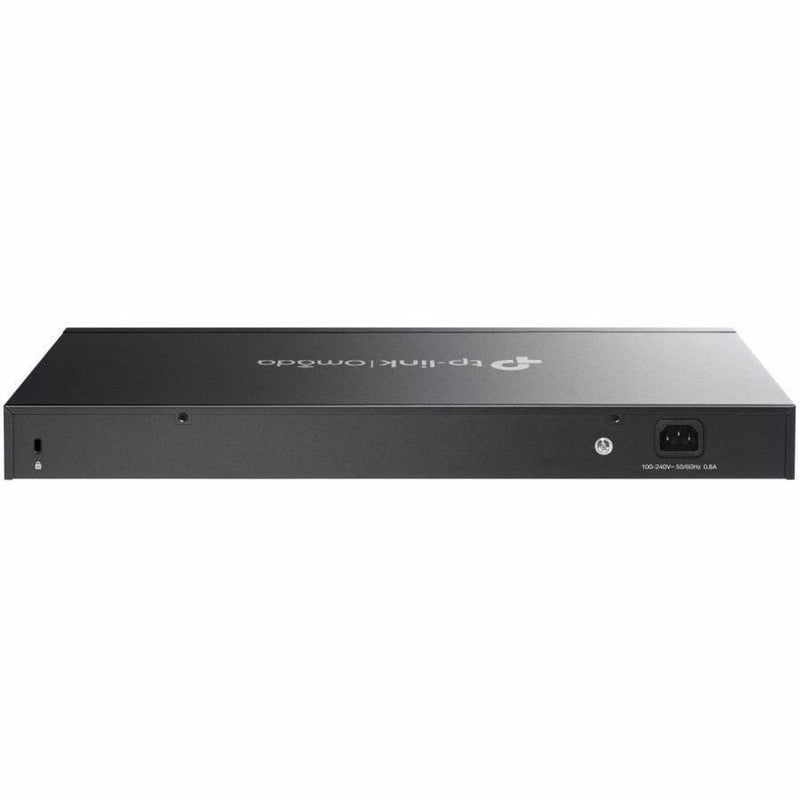

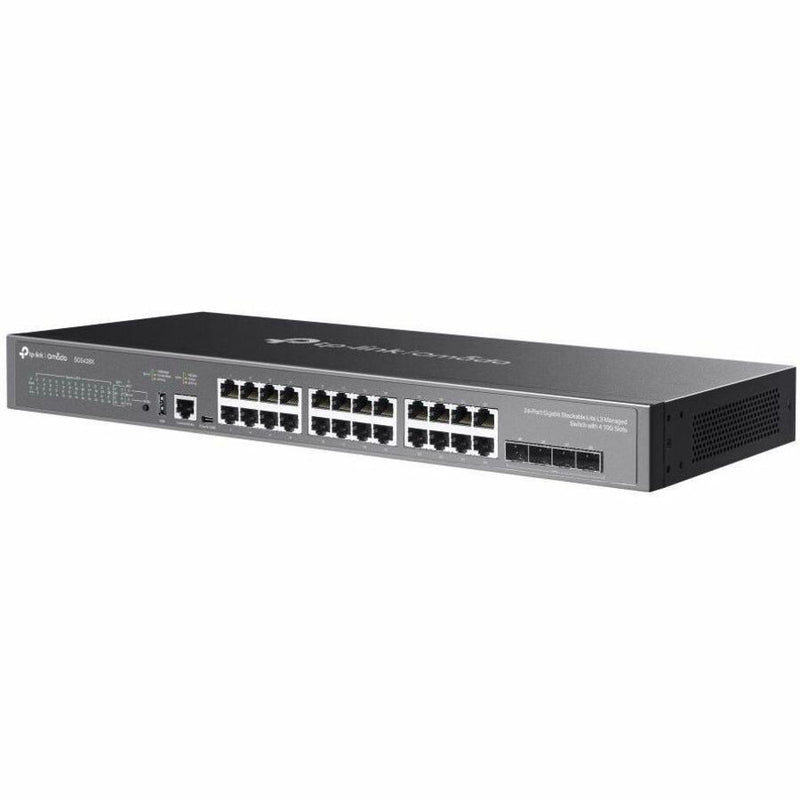

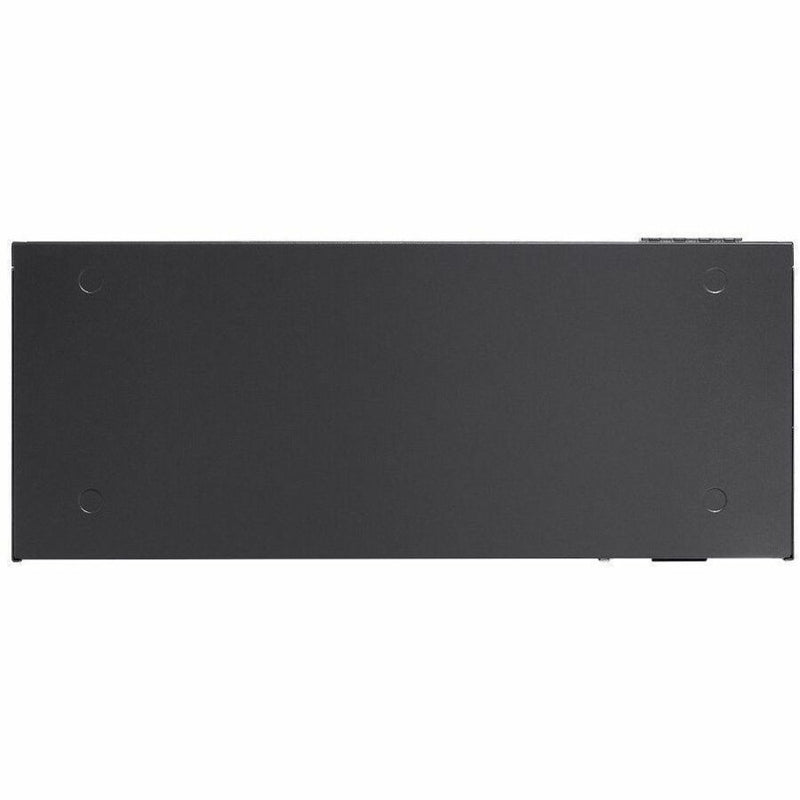

Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs.

High-speed Connectivity and Powerful Stacking

24× ;gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 ;Gbps switching capacity per unit. Up to 4 units of physical stacking empower ;the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes ;with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported. ;

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures ;rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 &; IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management-all controlled from a single interface.

Apart from the ability to be centrally ;managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable ;the switch to be polled for valuable status information and to send traps for abnormal events.

• Cascade to other network devices through the uplink port to expand your local area network
• Stack port provides an easy and hassle-free way to extend your office network
• Quickly and easily set up a wired network with 24 networking ports
• Built-in power supply to ensure all components are being supplied with accurate voltage
• Can work as layer 3 routing for scalable network design
• Rack mounting enables you to organize wires & secure cables for professional installation
• Managed switch provides a reliable foundation for your network
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
